(Optional) Use Fragment to open WAP pages

2024-05-16 07:13

You can open WAP pages in Fragment on Android by calling the Griver.createFragment4Url() API. For more information about Fragment, refer to Android's documentation on Fragments. This topic guides you on how to call the Griver.createFragment4Url() API.

Before you begin

Before calling the Griver.createFragment4Url() API, it is recommended to learn the following things:

Your SDK version needs to be at least IAPConnect 2.48.0. If you are not clear about the SDK version you integrate, contact your Solution Architect for help.
This API is used to open only WAP pages, and can't be used to open DSL-based mini programs.

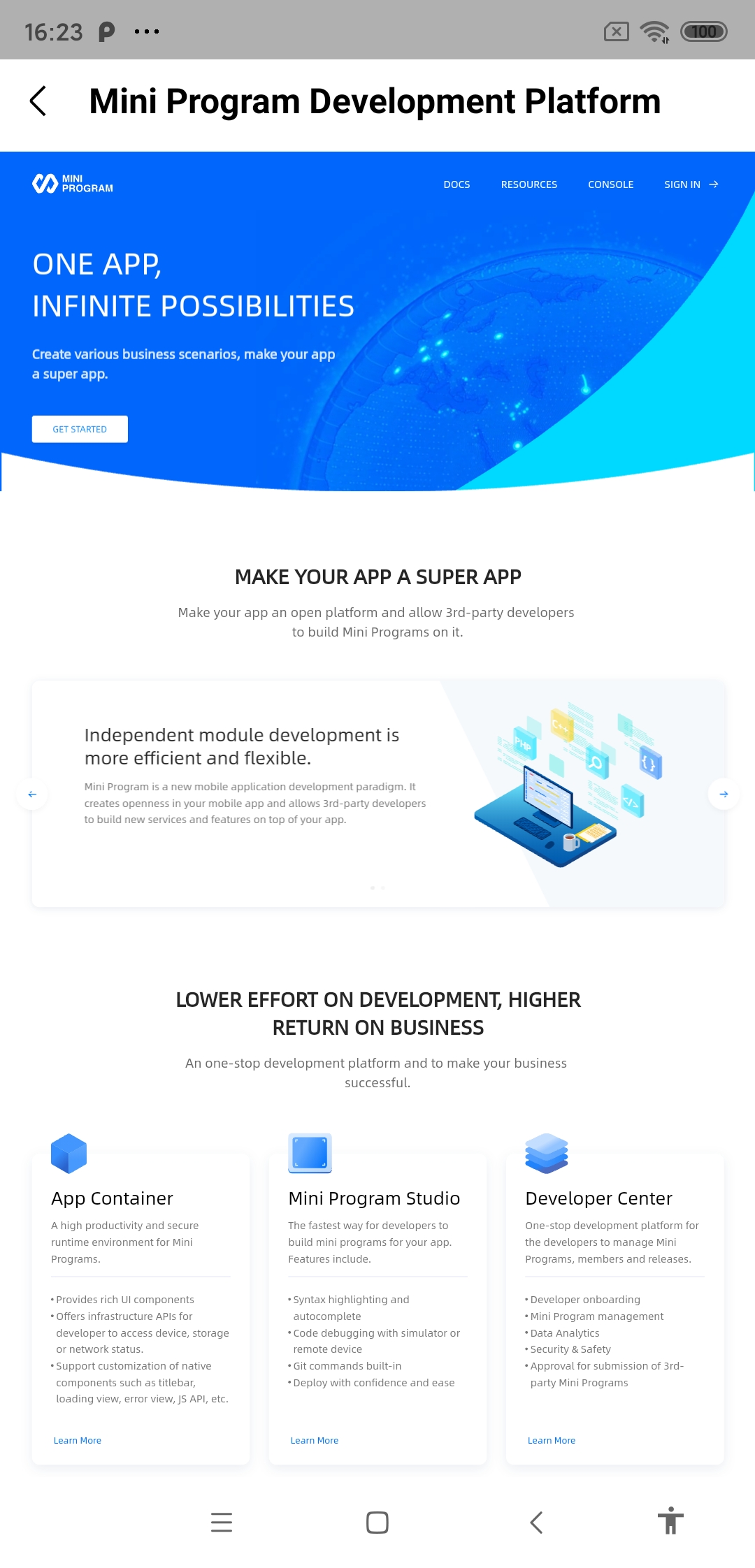

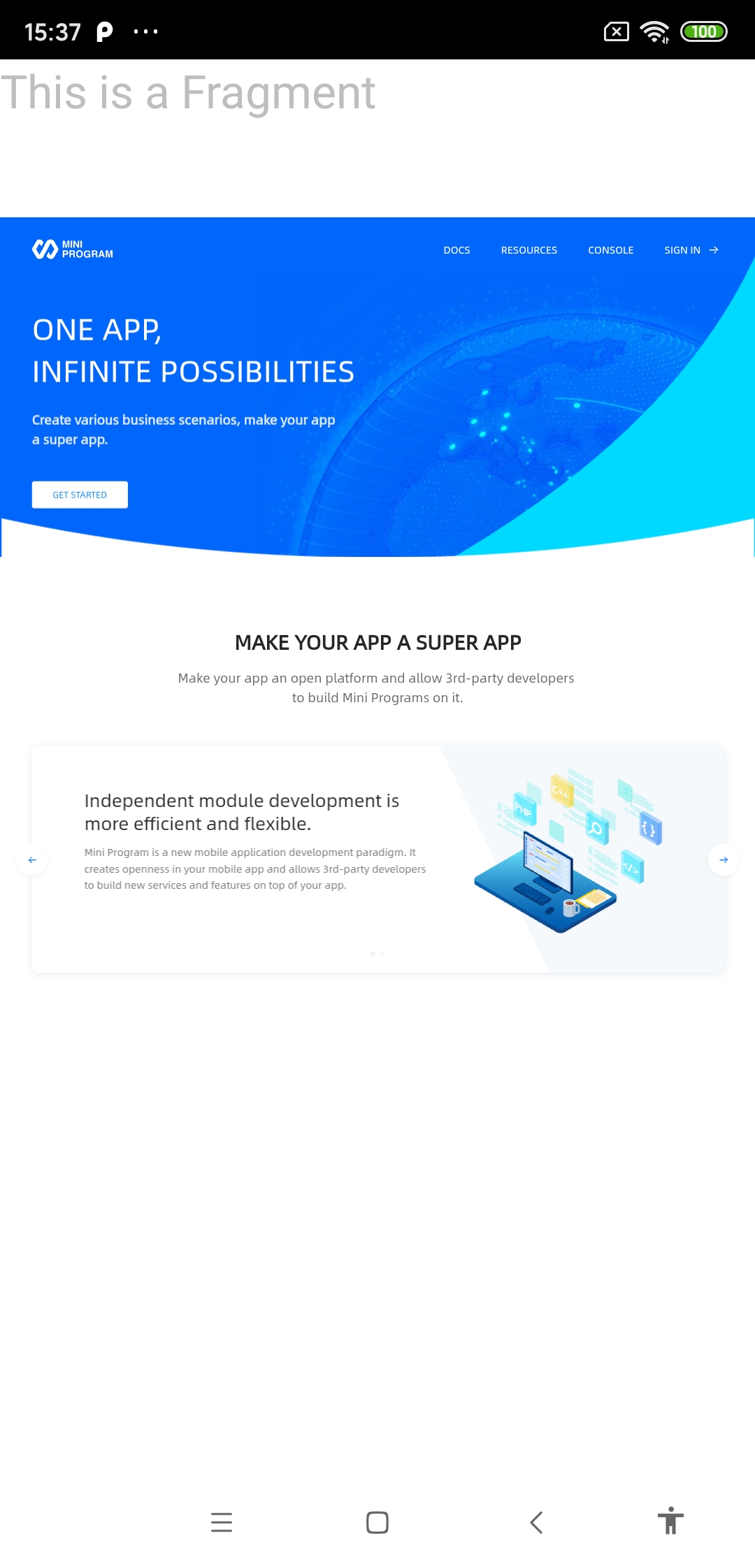

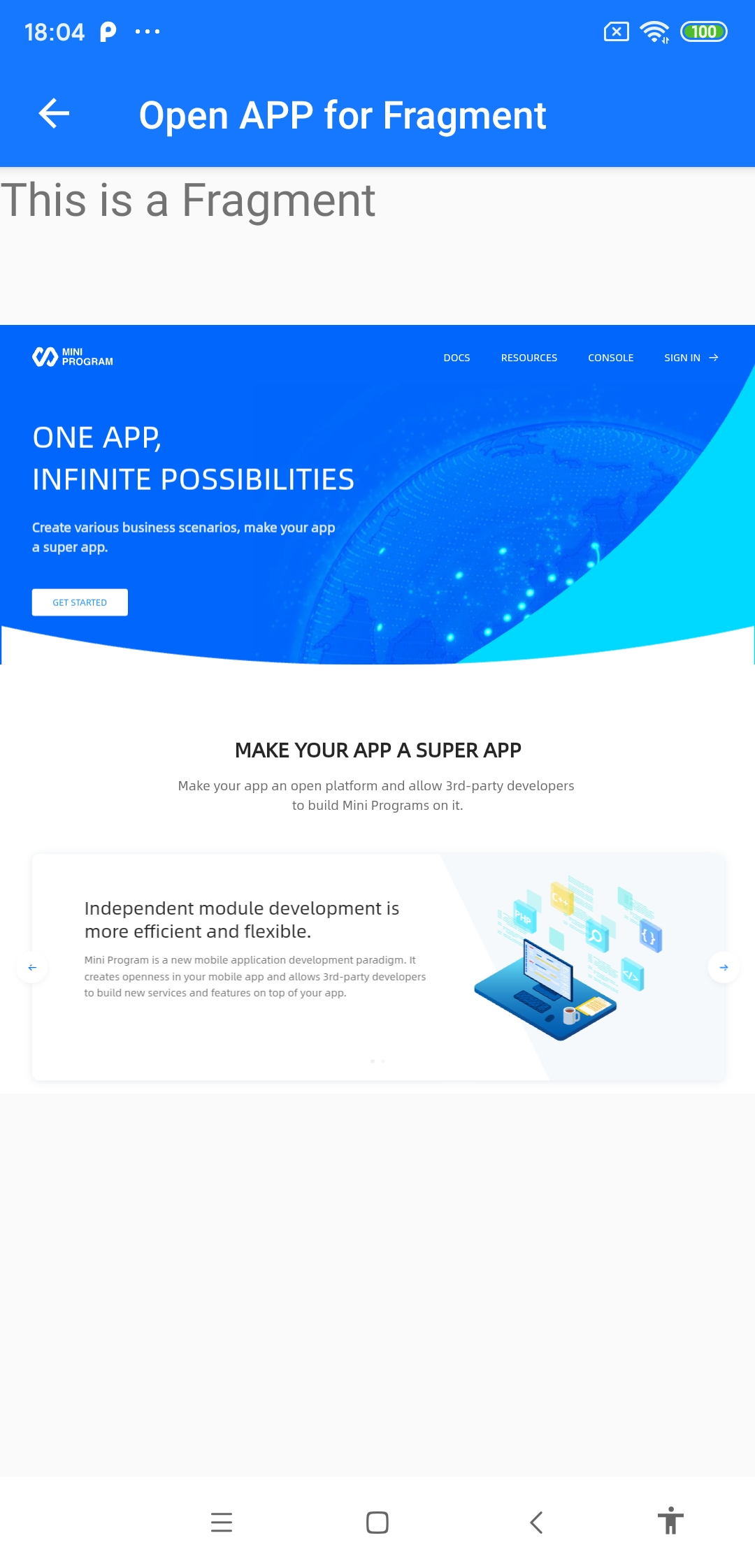

With Fragment, you can adjust the page into different sizes on the screen. However, it does not support displaying the title of the container as the openUrl API does. Refer to Figure 1 and Figure 2 for details. If you want to display a title or create page jumps with the title, you can set a page title in your own code. Refer to Figure 3 for details.

As a super app, if you want to implement the following capabilities when using Fragment, pass the related callbacks in the host Activity to Mini Program Platform:

Junmping from one page to another page
Requesting system permissions
Detecting physical button presses

Since screen rotations cause Fragment to re-render, to handle screen rotations without losing data, you need to add the configuration type to android:configChanges in the host Activity entry in AndroidManifest.xml using the following sample code:

copy
<activity
  android:name="YourActivity"
  android:configChanges="orientation|keyboardHidden|navigation|screenSize"
  />

Request parameters

The following table lists the request parameters of the Griver.createFragment4Url() API:

Property	Type	Required	Description
context	Context	Yes	Indicates the context. For more information, refer to Android's documentation on Context.
url	String	Yes	Indicates the URL of the WAP page.
extraParams	Bundle	No	The startup parameters.
callBack	GriverCreateFragmentCallBack	Yes	The callback on creating a fragment. You need to listen for this callback to retrieve the created fragment. For more information about how to specify this parameter, refer to the GriverCreateFragmentCallBack section.

Sample

The following sample codes show how to call the Griver.createFragment4Url() API:

copy

public class YourActivity extends AppCompatActivity {

    private GriverBaseFragment fragment1;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_custom_web_view);
        Bundle bundle = new Bundle();
        openOffline(bundle);
    }

    void openOffline(Bundle bundle) {
        Griver.createFragment4Url(YourActivity.this, "https://xxx", bundle, new GriverCreateFragmentCallBack() {
            @Override
            public void error(int errorCode, String errorMessage) {

            }

            @Override
            public void onFragmentCreate(GriverBaseFragment fragment) {
                if (fragment != null) {
                    YourActivity.this.fragment1 = fragment;
                    YourActivity.this.getSupportFragmentManager().beginTransaction().add(R.id.fragment_container_web, fragment)
                            .show(fragment1).commit();
                }
            }
        });
    }

    @Override
    public boolean onKeyDown(int keyCode, KeyEvent event) {
        if (fragment1 != null) {
            boolean b = fragment1.onKeyDown(keyCode, event);
            if (b) {
                return true;
            }
        }
        return super.onKeyDown(keyCode, event);
    }

    @Override
    public void onRequestPermissionsResult(int requestCode, String[] permissions,  int[] grantResults) {
        super.onRequestPermissionsResult(requestCode, permissions, grantResults);
        if (fragment1 != null) {
            fragment1.onRequestPermissionsResult(requestCode, permissions, grantResults);
        }
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if(fragment1 != null) {
            fragment1.onActivityResult(requestCode, resultCode, data);
        }
    }
}

copy
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">
    <FrameLayout
        android:layout_marginTop="50dp"
        android:id="@+id/fragment_container_web"
        android:layout_width="match_parent"
        android:layout_gravity="center"
        android:layout_height="400dp"
        />
</LinearLayout>

GriverCreateFragmentCallBack

The following sample code shows how to specify the GriverCreateFragmentCallBack request parameter:

copy
interface GriverCreateFragmentCallBack {
    void onFragmentCreate(GriverBaseFragment fragment);
    void error(int errorCode, String errorMessage);
}

Error codes

The following table lists the error codes, their descriptions, and further actions:

Error code	Description	Further action
90003	SDK is not initialized.	Initialize the SDK.
90002	Parameter error.	Refer to the Request parameters table and check if all parameter types are correct and if all required parameters are specified.

FAQ

When are fragments destroyed and WAP page resources recycled?

Fragments are destroyed, WAP page resources are recycled, and WAP pages are closed when the onDestroy() method of Fragment is called (for example, the method is called when fragments are removed by FragmentManager).
