Hosted mode

This article describes how to integrate card payment methods through the hosted mode. The hosted mode protects you from PCI-DSS restrictions because sensitive data is not passed through your servers and there is no requirement for you to be PCI-qualified. In this mode, Antom provides a payment information collection page that captures payment information and stores it as a card token (cardToken) for use in subsequent processes.

User experience

The following figures show the user experience in the first-time and saved card payments.

First-time payments

Web user experience


Saved card payments

Web user experience


Payment flow

For card payments with the hosted mode, the payment flow is composed of the following steps:


  1. The buyer enters the checkout page.
  2. Create the pay request
    After the buyer selects a payment method and submits the order, call the pay API to obtain the payment link to complete the payment.
  3. Handle the payment continuation URL
    The payment continuation URL is to be returned to the client. You need to redirect the buyer to the payment continuation URL. The payment continuation URL proceeds the payment process with different operations based on the characteristics of payment methods, such as collecting information, redirecting users, invoking the app, displaying QR codes, and performing verifications.
  4. Get the payment result
    Obtain the payment result using one of the following two methods:
    • Asynchronous notification: Specify the paymentNotifyUrl in the pay API to set the address for receiving asynchronous notifications. When the payment is successful or expires, Antom uses notifyPayment to send asynchronous notifications to you.
    • Synchronous inquiry: Call the inquiryPayment API to check the payment status.
  1. Get the capture result
    For card payments, you need to obtain the capture result using one of the following two methods:
    • Asynchronous notification: Specify paymentNotifyUrl in the pay API to set the address for receiving asynchronous notifications. When the payment request is successful or expires, Antom uses notifyCapture to send asynchronous notifications to you.
    • Synchronous inquiry: Call the inquiryPayment API to check the payment request status.

Integration steps

Most card payments follow the general payment flow and integration process provided by Antom. Start your integration by taking the following steps.

  1. (Optional) Display payment methods
  2. Authorize a payment
  3. Obtain the payment result
  4. Capture
  5. Obtain the capture results

Note: For Korean cards, issuer-authentication and non-authentication payment types exist. Non-authentication payments of Korean cards follow the general card payment process. However, issuer-authentication payments of Korean cards involve additional actions to take.

Step 1: (Optional) Display payment methods Client-side

Add the logos and names of the payment methods you plan to integrate. This allows buyers to easily choose their preferred method of payment. You can source the logos and names in two ways:

  • Contact Antom Technical Support.
  • Call the consult API to obtain the payment methods and logo URL supported by the current transactions based on the currency, transaction initiation terminal type, user region, and contracted payment methods.

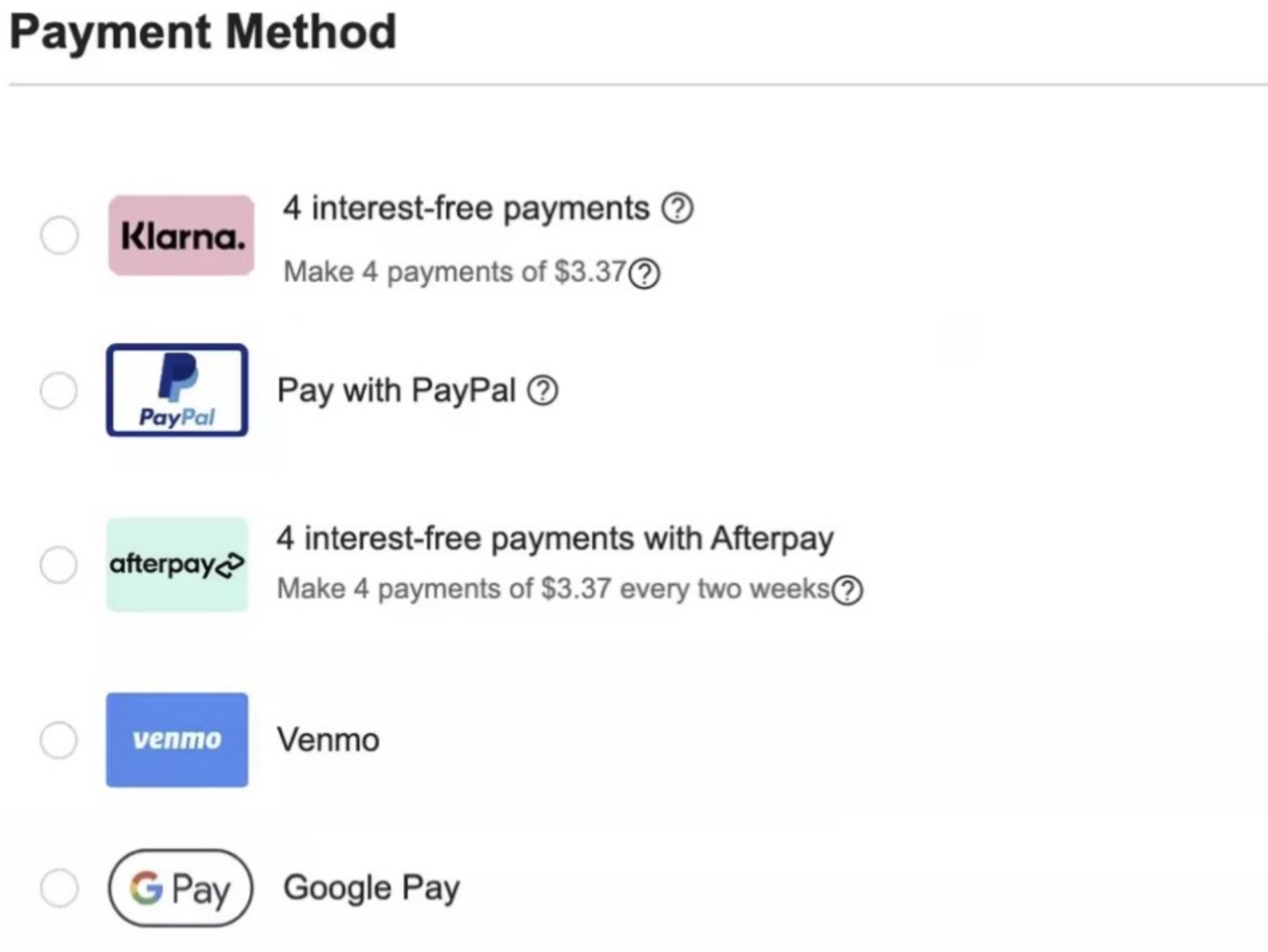

The following figure shows the page effect after adding a payment method:


Note: For Korean cards with issuer authentication required, you need to display card brands for the buyer to select.

Step 2: Authorize a payment Server-side

When the user selects a payment method provided by Antom, the card information collection page is displayed for the user. During this process, you need to collect the user's card, environment, and order information. Call the pay API, and submit an authorization request for payment.

Initiate a payment request Server-side

Antom provides server-side API libraries for multiple languages. The following code uses Java as an example. You need to install Java 6 or later.

Install an API library

You can find the latest version on GitHub.

copy
<dependency>
  <groupId>com.alipay.global.sdk</groupId>
  <artifactId>global-open-sdk-java</artifactId>
  <version>2.0.21</version>
</dependency>

Initialize the request instance

copy
String merchantPrivateKey = "YOUR PRIVATE KEY";
String alipayPublicKey = "ALIPAY PUBLIC KEY"
AlipayClient defaultAlipayClient = new DefaultAlipayClient(EndPointConstants.SG,
                merchantPrivateKey, alipayPublicKey);

Create a payment request

When sending a request for the pay API, you can also choose the following features according to your business needs:

  • Enable 3D authentication: Specify the value of is3DSAuthentication in the pay API to set whether the transaction is authenticated by using 3D Secure.
  • Salvage transaction intelligently: Automatically initiate a 3D Secure authentication for a non-3D Secure transaction if required by the card issuer to salvage a failed transaction.
  • Value-added risk control services: Antom provides upgraded risk control services at a transaction level, and intelligently decides risk control strategies based on the risk level of a transaction.
  • Address Verification System (AVS) service: This service verifies whether the provided billing address matches the cardholder's address on record at the issuing bank. AVS helps to prevent fraudulent transactions.
  • Store card info: Obtain the buyer's agreement to store card information at the first payment, so that the card information does not need to be entered again for the next payment.
  • Merchant-initiated transactions (MIT): Initiate scheduled or unscheduled transactions without user involvement.
  • Specify card brand: When the buyer chooses co-badged card payment, you can specify the card brand or the region where the card is authorized for payment.
  • MPI capability: The merchant prioritizes the third-party verification before the transaction is initiated, passes in the verification result information in the payment request, and specifies non-3D verification, which is not available if the merchant does not capture the card information.
  • Installment payments: When making a payment, buyers can choose the installment payment method and make regular payments for each installment period. After the buyer completes the payment for the initial installment period, Antom settles the full order amount based on the settlement period specified in the contract.

The following parameters are included in the payment request.

Parameter name

Is required?

Description

productCode

Yes

Represents the payment product that is being used, which is stipulated in the contract. For Cashier Payment, the value is fixed as CASHIER_PAYMENT.

paymentRequestId

Yes

The unique ID assigned by a merchant to identify a payment request.

paymentAmount

Yes

The payment amount that the merchant requests to receive in the order currency.

paymentMethod

Yes

The payment method that is used to collect the payment by the merchant or acquirer.

paymentRedirectUrl

Yes

The merchant page URL that the user is redirected to after the payment is completed.

settlementStrategy

No

The settlement strategy for the payment request.

order

Yes

The order information, such as buyer, merchant, goods, amount, shipping information, and purchase environment.

paymentExpiryTime

No

The specific date and time after which the payment session will expire.

env

Yes

Environmental information: used to improve payment success rate.

selectedCardBrand

No

For issuer-authentication of Korean cards scenarios, you need to specify the selectedCardBrand parameter as the specific card brand, see Card brands for a list of card brands.

requireIssuerAuthentication

No

For issuer-authentication of Korean cards scenarios, you need to specify the requireIssuerAuthentication parameter as true.

For more information about all parameters, refer to pay API.

Sample codes of calling pay API

The following sample code is used for initiating a payment:

copy
AlipayPayRequest alipayPayRequest = new AlipayPayRequest();
alipayPayRequest.setClientId(CLIENT_ID);
alipayPayRequest.setPath("/ams/sandbox/api/v1/payments/pay");
alipayPayRequest.setProductCode(ProductCodeType.CASHIER_PAYMENT);

// replace to your paymentRequestId
alipayPayRequest.setPaymentRequestId("paymentRequestId01");

// set amount
Amount amount = new Amount();
amount.setCurrency("SGD");
amount.setValue("4200");
alipayPayRequest.setPaymentAmount(amount);

// set paymentMethod
PaymentMethod paymentMethod = new PaymentMethod();
paymentMethod.setPaymentMethodType("CARD");
alipayPayRequest.setPaymentMethod(paymentMethod);

//set paymentFactor
PaymentFactor paymentFactor = new PaymentFactor();
paymentFactor.setAuthorization(true);
alipayPayRequest.setPaymentFactor(paymentFactor);

// set order Info
Order order = new Order();
order.setReferenceOrderId("referenceOrderId01");
order.setOrderDescription("antom test order");
Buyer buyer = new Buyer();
buyer.setReferenceBuyerId("yourBuyerId");
order.setBuyer(buyer);
order.setOrderAmount(amount);
alipayPayRequest.setOrder(order);

//set env Info
Env env = new Env();
env.setTerminalType(TerminalType.WEB);
env.setClientIp("114.121.121.01");
alipayPayRequest.setEnv(env);

// replace to your notify url
alipayPayRequest.setPaymentNotifyUrl("http://www.yourNotifyUrl.com");

// replace to your redirect url
alipayPayRequest.setPaymentRedirectUrl("http://www.yourRedirectUrl.com");

//do the Payment
AlipayPayResponse alipayPayResponse = null;
try {
    alipayPayResponse = defaultAlipayClient.execute(alipayPayRequest);
} catch (AlipayApiException e) {
    String errorMsg = e.getMessage();
    // handle error condition
}

The following code shows a sample of the request message:

General card payments request
copy
{
    "paymentNotifyUrl": "http://www.yourNotifyUrl.com",
    "paymentRequestId": "paymentRequestId011",
    "env": {
        "terminalType": "WEB",
        "clientIp": "114.121.121.01"
    },
    "paymentAmount": {
        "currency": "SGD",
        "value": "4200"
    },
    "productCode": "CASHIER_PAYMENT",
    "paymentRedirectUrl": "http://www.yourRedirectUrl.com",
    "paymentFactor": {
        "isAuthorization": true
    },
    "paymentMethod": {
        "paymentMethodType": "CARD"
    },
    "order": {
        "orderAmount": {
            "currency": "SGD",
            "value": "4200"
        },
        "referenceOrderId": "referenceOrderId01",
        "orderDescription": "antom test order",
        "buyer": {
            "referenceBuyerId": "yourBuyerId"
        }
    }
}

FAQs

How to set the value of terminalType?

If the buyer initiates the authorization process from a desktop browser, the terminalType needs to be specified as WEB.

Can I use Chinese characters in the value of the request parameters?

To avoid incompatibility of a certain payment method, do not use Chinese characters for fields in the request, including authState.

How to set the URL to receive the payment notification?

Antom sends you the payment result via notifyPayment, which you can specify in the pay API via the paymentNotifyUrl parameter. If the address of each payment is the same, you can also configure it in the Antom Dashboard. If you have configured the address and set the parameter in the API, Antom will use the address set in the API.

Receive a payment response

The returned parameters contain the following content:

  • normalUrl: The payment continuation URL, used for redirection.
  • paymentId: Order ID.

The following code is the sample response:

Successful authorization
copy
{
    "paymentAmount": {
        "currency": "SGD",
        "value": "4200"
    },
    "paymentCreateTime": "2021-11-12T01:27:50-08:00",
    "paymentId": "20211112194010800100188570271832381",
    "paymentRequestId": "paymentRequestId01",
    "paymentResultInfo": {
        "avsResultRaw": "A",
        "cvvResultRaw": "Y",
        "networkTransactionId": "sampleNetworkTransactionId123456"
    },
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

FAQs

What is the normalUrl?

For web transactions, Antom returns normalUrl, which the merchant server needs to pass to the merchant client for redirection. When you initiate payment for the same order again, you need to obtain a new normalUrl for redirection.

What is the paymentId

If you store the corresponding order number for subsequent refunds and reconciliations, you can specify the paymentId.

Redirect to the payment continuation URL Client-side

The merchant server passes the normalUrl to the client, and the client page handles the redirection process to normalUrl.

Step 3: Obtain the payment result Server-side

When the buyer completes the payment or the payment times out, you can get the corresponding payment result from the Antom asynchronous notification or by actively inquiring the payment result.

The response obtained from asynchronous notifications and inquiryPayment contains the authorization payment result as well as other key information such as:

API

Authorization result

AVS info

CVV info

3DS authentication info

notifyPayment

resultStatus

avsResultRaw

cvvResultRaw

threeDSResult (only available for the 3DS authentication authorization)

inquiryPayment

paymentStatus

avsResultRaw

cvvResultRaw

threeDSResult (only available for the 3DS authentication authorization)

Receive the asynchronous notification

When a payment is completed or fails, Antom sends an asynchronous notification (notifyPayment) to the address that you specified in the pay API via the paymentNotifyUrl parameter. If the address of each payment is the same, you can also configure the address in Antom Dashboard.

The following sample code shows a notification for a 3D payment:

copy
{
    "notifyType": "PAYMENT_RESULT",
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    },
    "paymentRequestId": "paymentRequestId01",
    "paymentId": "2020010123456789XXXX",
    "paymentAmount": {
        "value": "4200",
        "currency": "SGD"
    },
    "paymentCreateTime": "2020-01-01T12:01:00+08:30",
    "paymentTime": "2020-01-01T12:01:01+08:30",
    "paymentResultInfo": {
        "avsResultRaw": "A",
        "cvvResultRaw": "Y",
        "networkTransactionId": "sampleNetworkTransactionId123456",
        "threeDSResult": {
            "eci": "02",
            "threeDSVersion": "2.2.0",
            "caav": "cavvSample",
            "dsTransactionId": "sample_dsTranasctionId"
        }
    }
}

The following sample code shows a notification for a non-3D payment:

copy
{
    "notifyType": "PAYMENT_RESULT",
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    },
    "paymentRequestId": "paymentRequestId01",
    "paymentId": "2020010123456789XXXX",
    "paymentAmount": {
        "value": "4200",
        "currency": "SGD"
    },
    "paymentCreateTime": "2020-01-01T12:01:00+08:30",
    "paymentTime": "2020-01-01T12:01:01+08:30",
    "paymentResultInfo": {
        "avsResultRaw": "A",
        "cvvResultRaw": "Y",
        "networkTransactionId": "sampleNetworkTransactionId123456"
    }
}

How to verify the signature of the notification and make a response to the notification, see Sign a request and verify the signature.

FAQs

When will Antom send the asynchronous notification?

After the payment is completed, Antom will send the asynchronous notification to you in 3~5s. If the payment is not completed, you need to wait for Antom to close the order before sending the asynchronous notification. The time to close the order is different for different payment methods, generally the default is 14 minutes.

Will the asynchronous notification be re-sent?

If you receive an asynchronous notification from Antom, you are required to return the response in the Sample code format. If you do not respond to the asynchronous notification as required, or the asynchronous notification is not delivered due to network reasons, the notification will be automatically resent within 24 hours. The notification can be resent up to 8 times or until a correct response is received to terminate delivery. The sending intervals are as follows: 0 minutes, 2 minutes, 10 minutes, 10 minutes, 1 hour, 2 hours, 6 hours, and 15 hours.

When responding to the notification, do I need to add a digital signature?

If you receive an asynchronous notification from Antom, you are required to return the response in the Sample code format, but you do not need to add a digital signature to your response.

What are the key parameters in the notification that I need to use?

Pay attention to these key parameters in the notification:

  • result: Indicates the payment result of the order.
  • paymentRequestId: Indicates the payment request number you generated for consult, cancel, and reconciliation.
  • paymentId: Indicates the payment order number generated by Antom, used for refund and reconciliation.
  • paymentAmount: Indicates the payment amount.
  • Inquire about the payment result

    Call the inquiryPayment API to inquire about the payment result by specifying the following parameters:

    Parameter name

    is required?

    Description

    paymentRequestId

    No

    The payment request number generated by the merchant

    The following sample code shows how to call the inquiryPayment API:

    copy
    AlipayClient defaultAlipayClient = new DefaultAlipayClient(EndPointConstants.SG,
            merchantPrivateKey, alipayPublicKey);

    AlipayPayQueryRequest alipayPayQueryRequest = new AlipayPayQueryRequest();
    alipayPayQueryRequest.setClientId(CLIENT_ID);
    alipayPayQueryRequest.setPath("/ams/sandbox/api/v1/payments/inquiryPayment");
    alipayPayQueryRequest.setPaymentRequstId("paymentRequestId01");

    AlipayPayQueryResponse alipayPayQueryResponse;
    try {
        alipayPayQueryResponse = defaultAlipayClient.execute(alipayPayQueryRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // handle error condition
    }

    The following code shows a sample of the request message:

    copy
    {
      "paymentRequestId": "paymentRequestId01"
    }

    The following code shows a sample of the response message for a 3D payment:

    copy
    {
        "result": {
            "resultCode": "SUCCESS",
            "resultStatus": "S",
            "resultMessage": "Success"
        },
        "paymentStatus": "SUCCESS",
        "paymentRequestId": "paymentRequestId01",
        "paymentId": "2019060811401080010018882020035XXXX",
        "paymentAmount": {
            "value": "4200",
            "currency": "SGD"
        },
        "paymentCreateTime": "2019-06-01T12:01:01+08:30",
        "paymentTime": "2019-06-01T12:01:01+08:30",
        "paymentResultInfo": {
            "avsResultRaw": "A",
            "cvvResultRaw": "Y",
            "networkTransactionId": "sampleNetworkTransactionId123456",
            "threeDSResult": {
                "eci": "02",
                "threeDSVersion": "2.2.0",
                "caav": "cavvSample",
                "dsTransactionId": "sample_dsTranasctionId"
            }
        }
    }

    The following code shows a sample of the response message for a non-3D payment:

    copy
    {
        "result": {
            "resultCode": "SUCCESS",
            "resultStatus": "S",
            "resultMessage": "Success"
        },
        "paymentStatus": "SUCCESS",
        "paymentRequestId": "paymentRequestId01",
        "paymentId": "2019060811401080010018882020035XXXX",
        "paymentAmount": {
            "value": "4200",
            "currency": "SGD"
        },
        "paymentCreateTime": "2019-06-01T12:01:01+08:30",
        "paymentTime": "2019-06-01T12:01:01+08:30",
        "paymentResultInfo": {
            "avsResultRaw": "A",
            "cvvResultRaw": "Y",
            "networkTransactionId": "sampleNetworkTransactionId123456"
        }
    }

    FAQs

    What are the key parameters in the notification that I need to use?

    Pay attention to these key parameters:

    • result: Represents the result of this inquiryPayment API call, the result of the order needs to be judged according to paymentStatus, SUCCESS and FAIL represent the final result, PROCESSING represents the processing.
    • paymentAmount: Indicates the payment amount.
    How often should I call the API?

    It is recommended to initiate a round-robin query at an interval of 2 seconds, and you can initiate a round poll after initiating the pay API until the final payment result is queried or an asynchronous payment result notification is received.

    Step 4: Capture Server-side

    By default, Antom automatically handles funds capture for you. If you specify the value of paymentFactor.captureMode to MANUAL when calling the pay API, you must capture the funds of the payment by calling the capture API.

    • Automatic capture: Antom automatically captures funds immediately after the user authorizes the payment. The capture result is then communicated to you via an asynchronous notification. Automatic capture is activated when one of the following conditions is met:
      • You set the value of paymentFactor.captureMode in the pay API to AUTOMATIC.
      • You leave the value of paymentFactor.captureMode in the pay API empty or you do not pass in this parameter.
    • Manual capture: You must initiate fund capture by calling the capture API within seven days after successful authorization, otherwise Antom automatically unfreezes the authorized funds of the payment. The total capture amount must be equal to the total authorized amount.

    Note: For card payments, it is recommended to confirm the successful capture result before shipping.

    The key request parameters in the capture API are shown in the following table:

    Parameter

    Description

    captureRequestId

    A unique identifier that you assign to a capture request.

    paymentId

    A unique identifier that Antom assigns to an order.

    captureAmount

    The capture amount, which must be equal to the total authorized amount.

    The following sample code is used for initiating a capture.

    copy
    AlipayCaptureRequest alipayCaptureRequest = new AlipayCaptureRequest();
    alipayCaptureRequest.setPath("/ams/sandbox/api/v1/payments/capture");
    alipayCaptureRequest.setClientId(CLIENT_ID);

    Amount amount = new Amount();
    amount.setCurrency("SGD");
    amount.setValue("4200");
    alipayCaptureRequest.setCaptureAmount(amount);

    alipayCaptureRequest.setCaptureRequestId("captureRequestId01");
    alipayCaptureRequest.setPaymentId("2019060811401080010018882020035XXXX");

    AlipayCaptureResponse alipayCaptureResponse= null;

    try{
        alipayCaptureResponse = defaultAlipayClient.execute(alipayCaptureRequest);
    }catch (AlipayApiException e){
        String errorMsg = e.getMessage();
    }

    The following code shows a sample of the response message:

    copy
    {
        "paymentId": "2019060811401080010018882020035XXXX",
        "captureRequestId": "captureRequestId01",
        "captureAmount": {
            "currency": "SGD",
            "value": "4200"
        }
    }

    Step 5: Obtain the capture results Server-side

    When the buyer completes the capture or the capture times out, you can get the corresponding payment result from the Antom asynchronous notification or by inquiring the payment result actively.

    Receive the asynchronous notification

    When the capture is completed or fails, Antom sends an asynchronous notification (notifyCapture) to the address that you specified in the pay API via the paymentNotifyUrl parameter. If the address of receiving each capture notification is the same, you can also configure the address in Antom Dashboard.

    The following code is a notification sample of a successful payment:

    copy
      "captureAmount": {
        "currency": "SGD",
        "value": "4200"
      },
      "notifyType": "CAPTURE_RESULT",
      "captureId": "2022XXXXXXX",
      "captureRequestId": "captureRequestId01",
      "captureTime": "2022-11-10T00:34:52-08:00",
      "paymentId": "2022XXXXXXX",
      "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
      }
    }

    The following code is a notification sample of a failed payment:

    copy
      "captureAmount": {
        "currency": "SGD",
        "value": "4200"
      },
      "notifyType": "CAPTURE_RESULT",
      "captureId": "2022XXXXXXX",
      "captureRequestId": "captureRequestId01",
      "captureTime": "2022-11-10T00:34:52-08:00",
      "paymentId": "2022XXXXXXX",
      "result": {
        "resultCode": "PROCESS_FAIL",
        "resultMessage": "fail.",
        "resultStatus": "F"
      }
    }

    The following sample code shows the process of verifying the signature and responding to the notification:

    copy
    @RequestMapping(path = "/captureResult", method = RequestMethod.POST)
    public ResponseEntity<AlipayResponse> captureNotifyProcessor(HttpServletRequest request,
                                                                 @RequestBody String body) {

        // retrieve the required parameters from the request header.
        String requestTime = request.getHeader("request-time");
        String clientId = request.getHeader("client-id");
        String rawSignature = request.getHeader("signature");
        String signature = "";

        // get valid part from raw signature
        if(rawSignature==null||rawSignature.isEmpty()){
            throw new RuntimeException("empty notify signature");
        }else {
            String[] parts = rawSignature.split("signature=");
            if (parts.length > 1) {
                signature = parts[1];
            }
        }

        // verify payment result notify's signature
        boolean verifyResult = SignatureTool.verify(request.getMethod(), request.getRequestURI(),
                clientId, requestTime, body, signature,
                ALIPAY_PUBLIC_KEY);
        if (!verifyResult) {
            throw new RuntimeException("Invalid notify signature");
        }

        // update the record status with notify result

        // respond the server that we accept the notify
        Result result = new Result("SUCCESS", "success", ResultStatusType.S);
        AlipayResponse response = new AlipayResponse();
        response.setResult(result);
        return ResponseEntity.ok().body(response);
    }

    FAQs

    When will Antom send the asynchronous notification?

    It depends on whether the payment is completed:

    • If the payment is successfully completed, Antom will usually send you an asynchronous notification within 3 to 5 seconds. For some payment methods like OTC, the notification might take a bit longer.
    • If the payment is not completed, you need to wait for Antom to close the order before sending an asynchronous notification. The time it takes for different payment methods to close the order varies, usually defaulting to 14 minutes.
    Will the asynchronous notification be re-sent?

    Yes, the asynchronous notification will be re-sent automatically within 24 hours for the following cases:

    • If you didn't receive the asynchronous notification due to network reasons.
    • If you receive an asynchronous notification from Antom, but you didn't make a response to the notification in the Sample code format.

    The notification can be resent up to 8 times or until a correct response is received to terminate delivery. The sending intervals are as follows: 0 minutes, 2 minutes, 10 minutes, 10 minutes, 1 hour, 2 hours, 6 hours, and 15 hours.

    When responding to the notification, do I need to add a digital signature?

    If you receive an asynchronous notification from Antom, you are required to return the response in the Sample code format, but you do not need to countersign the response.

    What are the key parameters in the notification that I need to use?

    Pay attention to the following key parameters:

    • result: Indicates the payment result of the order.
    • notifyType: CAPTURE_RESULT
    • paymentId: Indicates the payment order number generated by Antom, used for refund and reconciliation.
    • acquirerReferenceNo: For merchants that access card payment in Singapore and Hong Kong, the specific acquiring station number will be notified in the notification.

    Inquire about the payment result

    Call the inquiryPayment API to inquire about the capture result by specifying the following parameters:

    Parameter name

    is required?

    Description

    paymentRequestId

    No

    The payment request number generated by the merchant

    The following sample code shows how to call the inquiryPayment API:

    copy
    AlipayClient defaultAlipayClient = new DefaultAlipayClient(EndPointConstants.SG,
            merchantPrivateKey, alipayPublicKey);

    AlipayPayQueryRequest alipayPayQueryRequest = new AlipayPayQueryRequest();
    alipayPayQueryRequest.setClientId(CLIENT_ID);
    alipayPayQueryRequest.setPath("/ams/sandbox/api/v1/payments/inquiryPayment");
    alipayPayQueryRequest.setPaymentRequestId("paymentRequestId01");

    AlipayPayQueryResponse alipayPayQueryResponse;
    try {
        alipayPayQueryResponse = defaultAlipayClient.execute(alipayPayQueryRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // handle error condition
    }

    The following is the request message:

    copy
    {
      "paymentRequestId":"paymentRequestId01"
    }

    Value of capture status

    The value of the transactions field in the API response is the capture status:

    Parameter

    Description

    transactions.transationType

    The value is CAPTURE. It indicates the capture status.

    transactions.transactionResult

    The capture result.

    The value of transactions indicates the capture status. See the following code samples for a successful capture:

    copy
    {
        "transactions": [
            {
                "transactionType": "CAPTURE",
                "transactionStatus": "SUCCESS",
                "transactionRequestId": "test_test_test_XXXX",
                "transactionAmount": {
                    "currency": "SGD",
                    "value": "4200"
                },
                "transactionId": "2022XXXXXXXX",
                "transactionResult": {
                    "resultStatus": "S",
                    "resultCode": "SUCCESS",
                    "resultMessage": "success"
                }
            }
        ]
    }

    The value of transactions indicates the capture status. See the following code samples for a failed capture:

    copy
    {
        "transactions": [
            {
                "transactionType": "CAPTURE",
                "transactionStatus": "FAIL",
                "transactionRequestId": "test_test_test_XXXX",
                "transactionAmount": {
                    "currency": "SGD",
                    "value": "4200"
                },
                "transactionTime": "2022-09-29T07:13:50-07:00",
                "transactionId": "2022XXXXXXXX",
                "transactionResult": {
                    "resultStatus": "F",
                    "resultCode": "PROCESS_FAIL",
                    "resultMessage": "General business failure. No retry."
                }
            }
        ]
    }

    The value of transactions indicates the capture status. See the following code samples for a capture that is in processing:

    copy
    {
        "transactions": [
            {
                "transactionType": "CAPTURE",
                "transactionStatus": "PROCESSING",
                "transactionRequestId": "test_test_test_XXXX",
                "transactionAmount": {
                    "currency": "SGD",
                    "value": "4200"
                },
                "transactionId": "2022XXXXXXXX",
                "transactionResult": {
                    "resultStatus": "U",
                    "resultCode": "PAYMENT_IN_PROCESS",
                    "resultMessage": "payment in process"
                }
            }
        ]
    }

    FAQs

    What are the key parameters in the notification that I need to use?

    Pay attention to these key parameters:

    • result: Represents the result of this inquiryCapture API call, the result of the order needs to be judged according to transactionResult, SUCCESS and FAIL represent the final result, PROCESSING represents the processing.
    How often should I call the API?

    It is recommended to initiate a round-robin query at an interval of 2 seconds, and you can initiate a round poll after initiating the order consult API until the final capture result is queried or an asynchronous capture result notification is received.

    Best practice

    Follow these best practices to improve integration efficiency.

    Customize the payment timeout

    In the Checkout Payment scenario, the default timeout on the Antom side is 14 minutes. After the payment timeout, the buyer can't continue to pay. You can specify the timeout time through the paymentExpireTime parameter of the pay API. After exceeding the specified time, the buyer cannot scan the code or log in to the checkout page.

    The following sample code shows how to specify the paymentExpireTime parameter in the pay API:

    copy
    {
      "env": {
        "osType": "ANDROID",
        "terminalType": "APP"
      },
      "order": {
        "orderAmount": {
          "currency": "CNY",
          "value": "1314"
        },
        "orderDescription": "Cappuccino #grande (Mika's coffee shop)",
        "referenceOrderId": "ORDER_0517884936248XXXX"
      },
      "paymentAmount": {
        "currency": "CNY",
        "value": "1314"
      },
      "paymentMethod": {
        "paymentMethodType": "ALIPAY_CN"
      },
      "paymentExpiryTime":"2024-01-20T08:51:06+08:00",
      "paymentNotifyUrl": "https://www.gaga.com/notify",
      "paymentRedirectUrl": "imeituan://",
      "paymentRequestId": "iJ9lsVgTx8pX7qJpvW6rfqEE2Kdv9M3lgL8e1999ydfz52uMSqwvT3qXYw8IFBYt",
      "productCode": "CASHIER_PAYMENT",
      "settlementStrategy": {
        "settlementCurrency": "USD"
      }
    }

    It is recommended to set the interface timeout to 10s to increase the response success rate.

    Suggestions on processing logic for merchant results pages

    1. Handling redirection issues

    When the buyer has successfully completed a payment but encounters issues redirecting to the paymentRedirectUrl that you specified, whether due to network issues or payment method limitations, take note of the following two points:

      • You cannot use the client redirection as the basis for determining the success of the payment.
      • If the paymentRedirectUrl of the payment method page fails to redirect to the merchant page, the buyer may manually click the original merchant page. To prevent buyers from mistakenly attempting to pay for the order again, it is recommended to implement a pop-up window on the original merchant page. This pop-up should allow for transaction result inquiries. When buyers click on this pop-up, it should display the transaction outcome, thereby preventing any duplicate payment attempts.
    1. Trigger order result query after redirection

    If the merchant side is pulled up after triggering a call to the inquiryPayment API, then the following different results are suggested:

      • Successful payment: The page will display the content related to the shipment after successful payment.
      • Payment Failure: Indicate that the payment failed and offer guidance for retrying the payment to encourage order completion.
      • Payment processing: Display the landing effect and implement a brief pause of 3-5 seconds before querying the server again for the payment outcome. If the result remains inconclusive (neither success nor failure), it is recommended to display "order processing" or "order management portal to view the final result.". Refrain from attributing the delay to “network processing”.

    Payment failed retry

    When a payment attempt for an order fails, and the buyer can retry payment for the same order, we recommend adhering to the following integration process for a seamless experience:

    1. In the payment request, set the referenceOrderId to the order ID and the paymentRequestId to the payment order ID.
    2. If payment needs to be retried for the same order, check the order status first. If payment has already succeeded, display "Completed Payment" to the buyer. If not, call the pay API again to obtain a new normalUrl for redirection. Though referenceOrderId remains the same since it's the same order, you must update the paymentRequestId for the subsequent payment attempt.
    3. Verify that each merchant order only has one successful payment associated with it. If multiple successful payments are detected for a single order, call the cancel API to initiate a refund for the buyer.
    4. For payment methods that do not offer refunds, it is recommended to cancel the initial payment before initiating a new one.

    Timing of obtaining and checking payment results

    In order to guarantee the stable acquisition of payment results and avoid the situation where the buyer's payment is completed but you do not get the payment result. It is recommended that you check the payment results at the following stages:

    1. When the merchant payment result page is displayed.
    2. Before shipping to the buyer.
    3. When you receive the Antom reconciliation file.
