      Secure file transmission

      Fulfill these security requirements to ensure secure file transmission.


      #SFTP account management

      If the SFTP server of Alipay is used, contact technical support to obtain the credentials to login to the SFTP server.

      If the SFTP server of a partner is used, partners must complete the SFTP server system configuration on Alipay first.


      #File transfer process

      File exchange happens between Alipay and partners.

      For the file sender, the file uploading process is as follows:


      Figure 1. File uploading process


      For file receiver, the file downloading process is as follows:

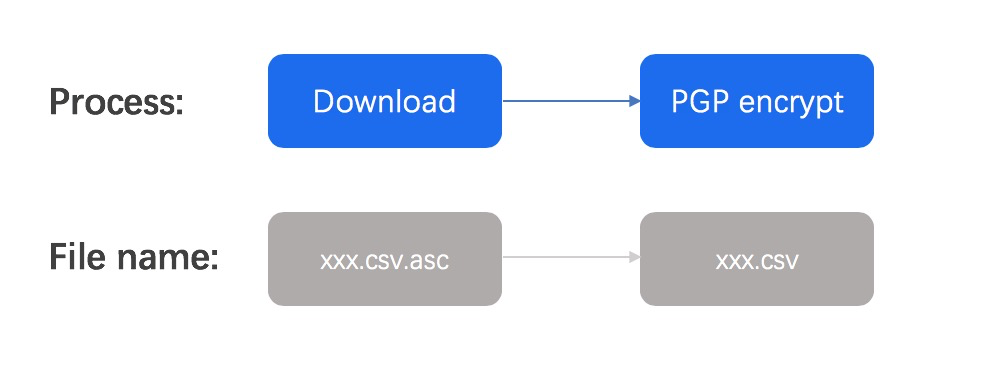

      Figure 2. File downloading process


      #Pre-upload process

      Before the transmission, encrypt files by using the PGP algorithm to enhance the transmission security. A .asc suffix is added to the encrypted file to differentiate it from the unencrypted file.


      #Upload files

      To prevent temporary files from being wrongly downloaded, rename the file by appending a .tmp suffix to the file name before uploading. After the transmission is completed, rename the file back to the original name by removing the .tmp suffix.


      #Download files

      Do not download the temporary file, which is ended with a .tmp suffix.

      After the file is downloaded, decrypt the file by using the PGP algorithm.


      #File retention

      Files on the SFTP server can be kept for seven days. Files older than seven days are automatically removed from the server.
