Secure file transmission

Fulfill these security requirements to ensure secure file transmission.

SFTP account management

If the SFTP server of Antom is used, contact technical support to obtain the credentials to log in to the SFTP server.

If the SFTP server of a partner is used, partners must complete the SFTP server system configuration on Antom first.

File transfer process

File exchange happens between Antom and partners.

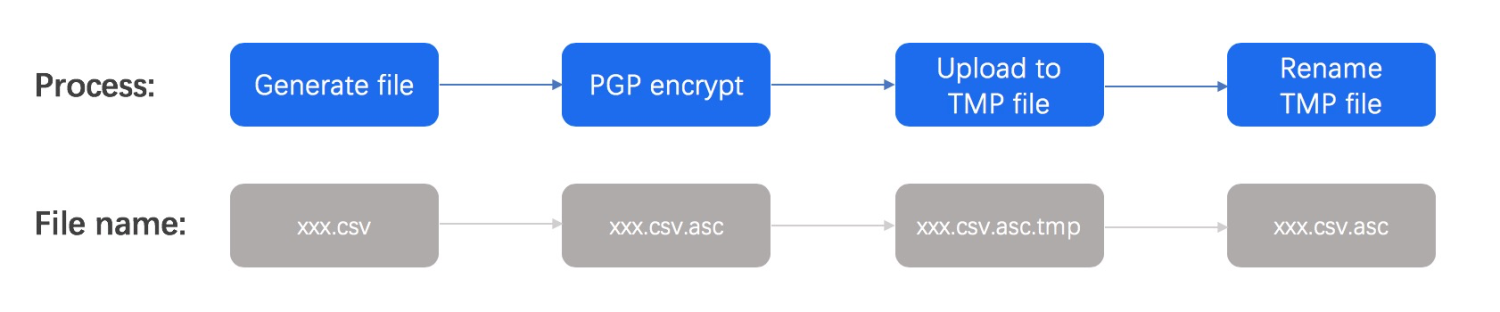

For the file sender, the file uploading process is as follows:


Figure 1. File uploading process

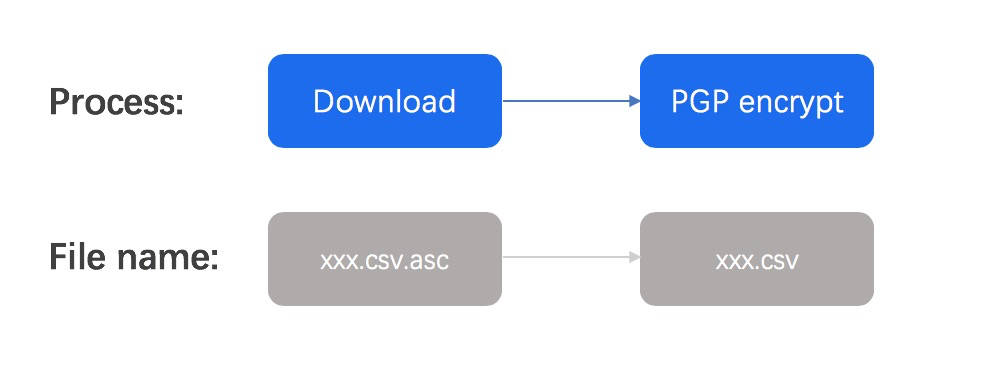

For file receiver, the file downloading process is as follows:


Figure 2. File downloading process

Pre-upload process

Before the transmission, encrypt files by using the PGP algorithm to enhance the transmission security. A .asc suffix is added to the encrypted file to differentiate it from the unencrypted file.

Upload files

To prevent temporary files from being wrongly downloaded, rename the file by appending a .tmp suffix to the file name before uploading. After the transmission is completed, rename the file back to the original name by removing the .tmp suffix.

Download files

Do not download the temporary file, which has a .tmp suffix.

After the file is downloaded, decrypt the file by using the PGP algorithm.

File retention

Files on the SFTP server can be kept for seven days. Files older than seven days are automatically removed from the server.
